#Webhooks

Webhooks allow you to send real-time HTTP notifications to external services when specific events occur in your store, such as order completions, refunds, or tracking updates.

---

#What Are Webhooks?

Webhooks are automated messages sent from FirearmCart to a URL you specify when certain events happen. They're useful for:

• Syncing with external systems - Update inventory, CRM, or accounting software
• Triggering automations - Send notifications, update databases, trigger workflows
• Custom integrations - Connect with any service that accepts HTTP requests

---

#Available Events

#Standard Events

All plans include these webhook events:

Event	Description
Order Completed	Triggered when a customer completes checkout
Order Refunded	Triggered when an order is refunded
Order Voided	Triggered when an order is voided
Tracking Assigned	Triggered when tracking information is added
Order Delivered	Triggered when an order is marked as delivered

#Enhanced Tracking Events

These events require Enhanced Shipment Tracking (Pro plan or above):

Event	Description
Shipment In Transit	Triggered when carrier scans package in transit
Shipment Out for Delivery	Triggered when package is out for delivery
Shipment Delivered	Triggered when carrier confirms delivery

---

#Creating a Webhook

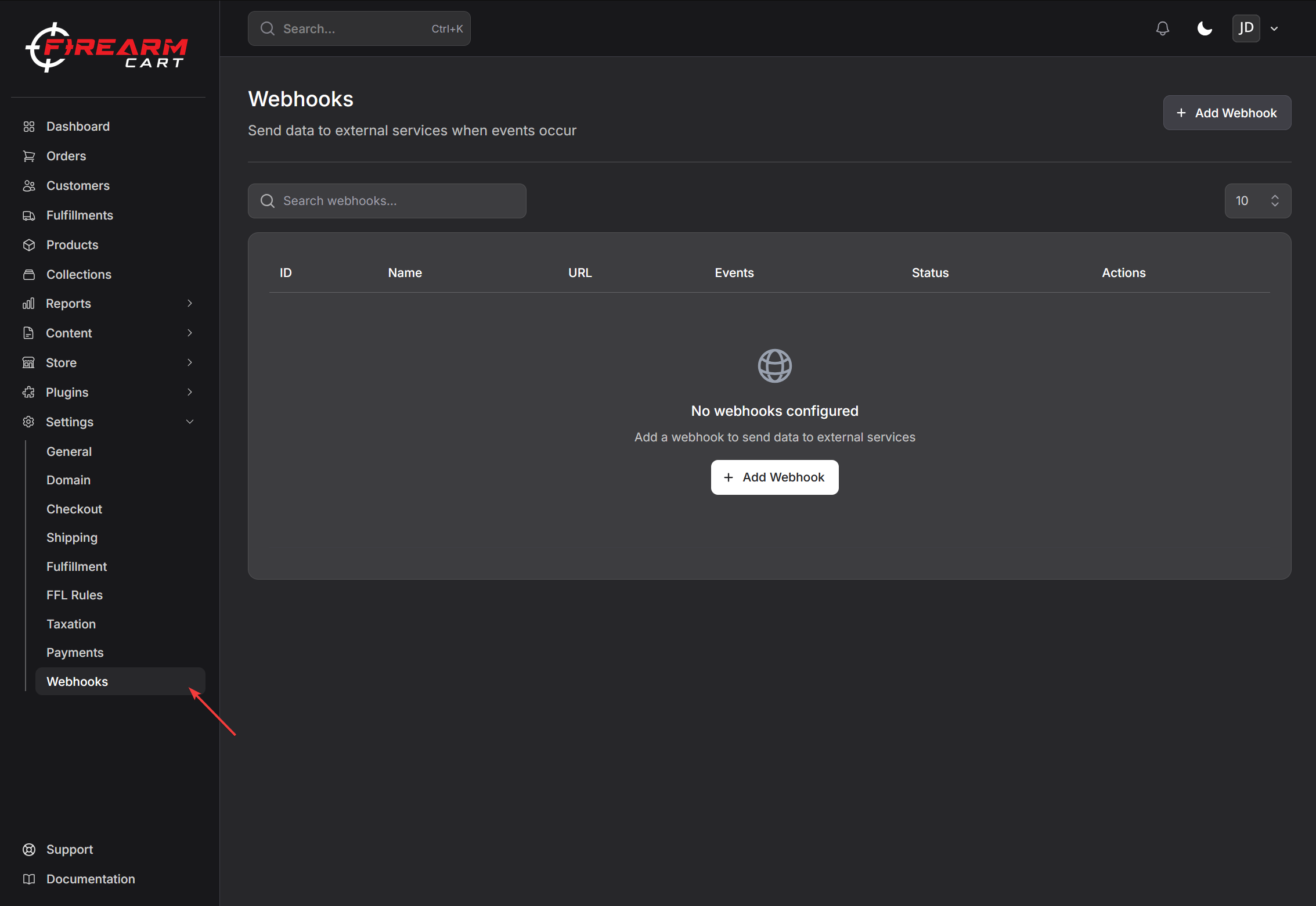

#Step 1: Open Webhook Settings

1. Go to Settings > Webhooks
2. Click Add Webhook

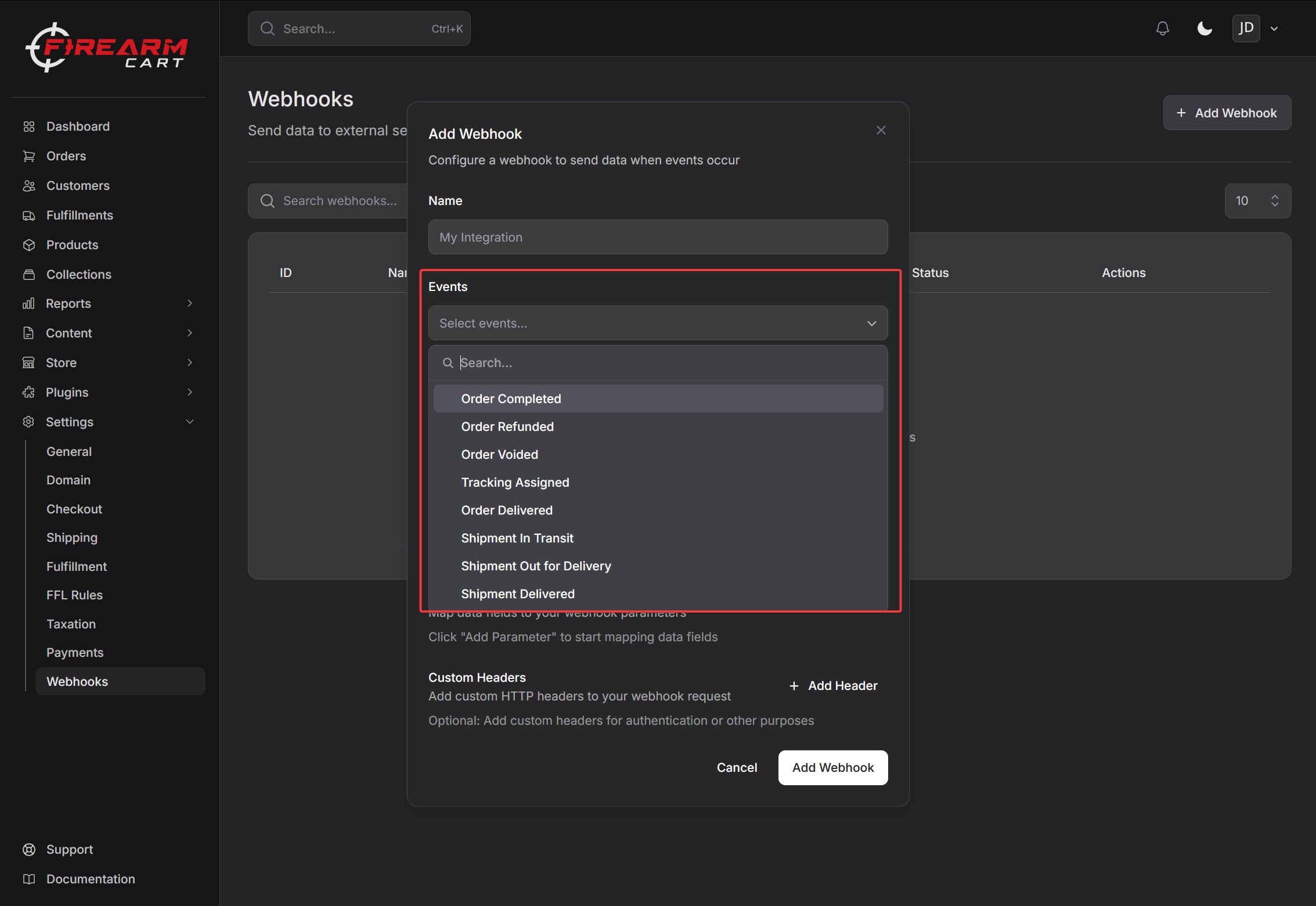

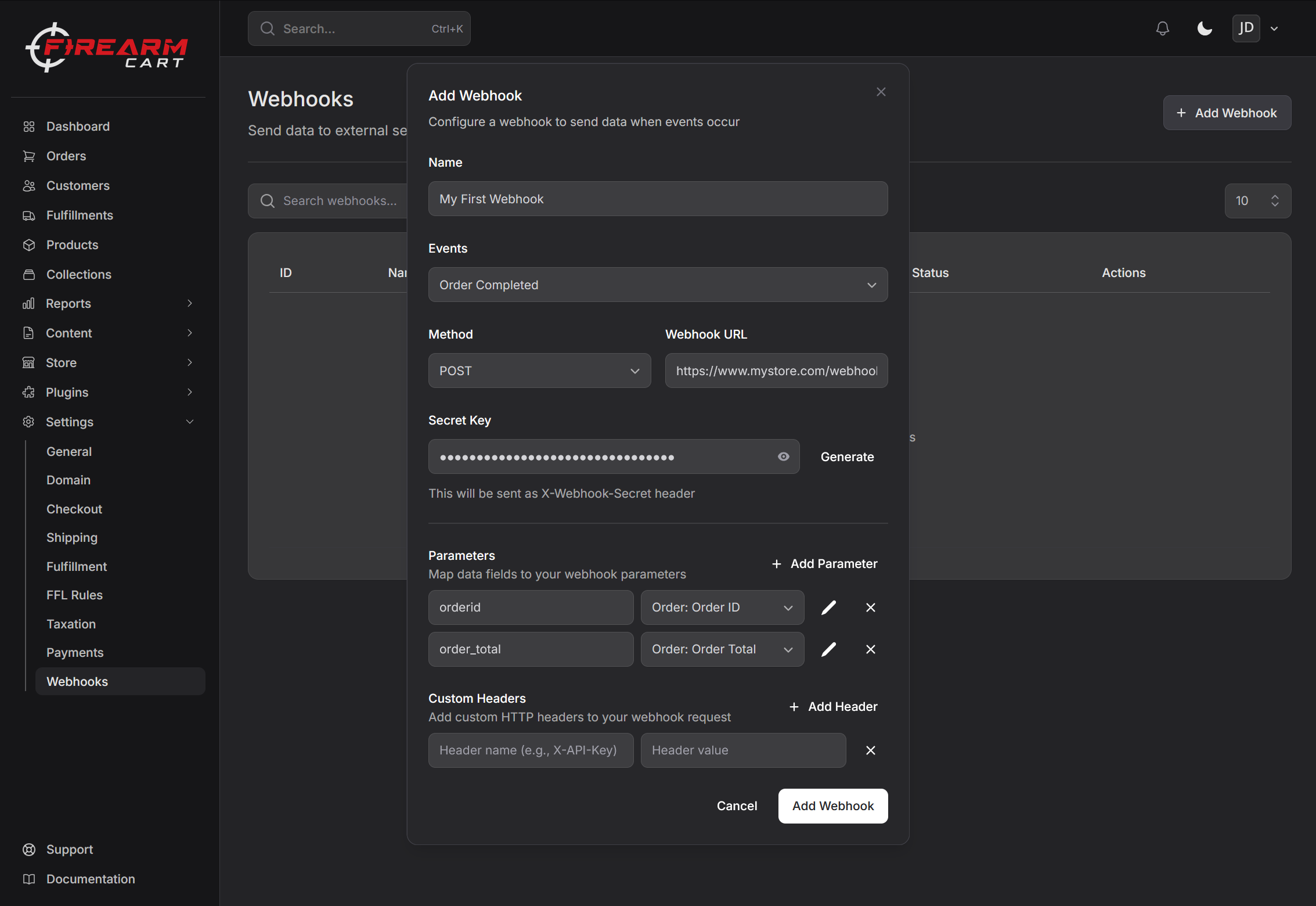

#Step 2: Configure Basic Settings

1. Name - Enter a descriptive name (e.g., "Inventory Sync", "CRM Update")
2. Events - Select which events should trigger this webhook
3. Method - Choose POST or GET
4. Webhook URL - Enter the endpoint URL that will receive the webhook

#Step 3: Set Up Security

1. Secret Key - Enter or generate a secret key
2. This secret is sent as the X-Webhook-Secret header with every request
3. Use it to verify requests are from FirearmCart

Tip: Click Generate to create a secure random secret.

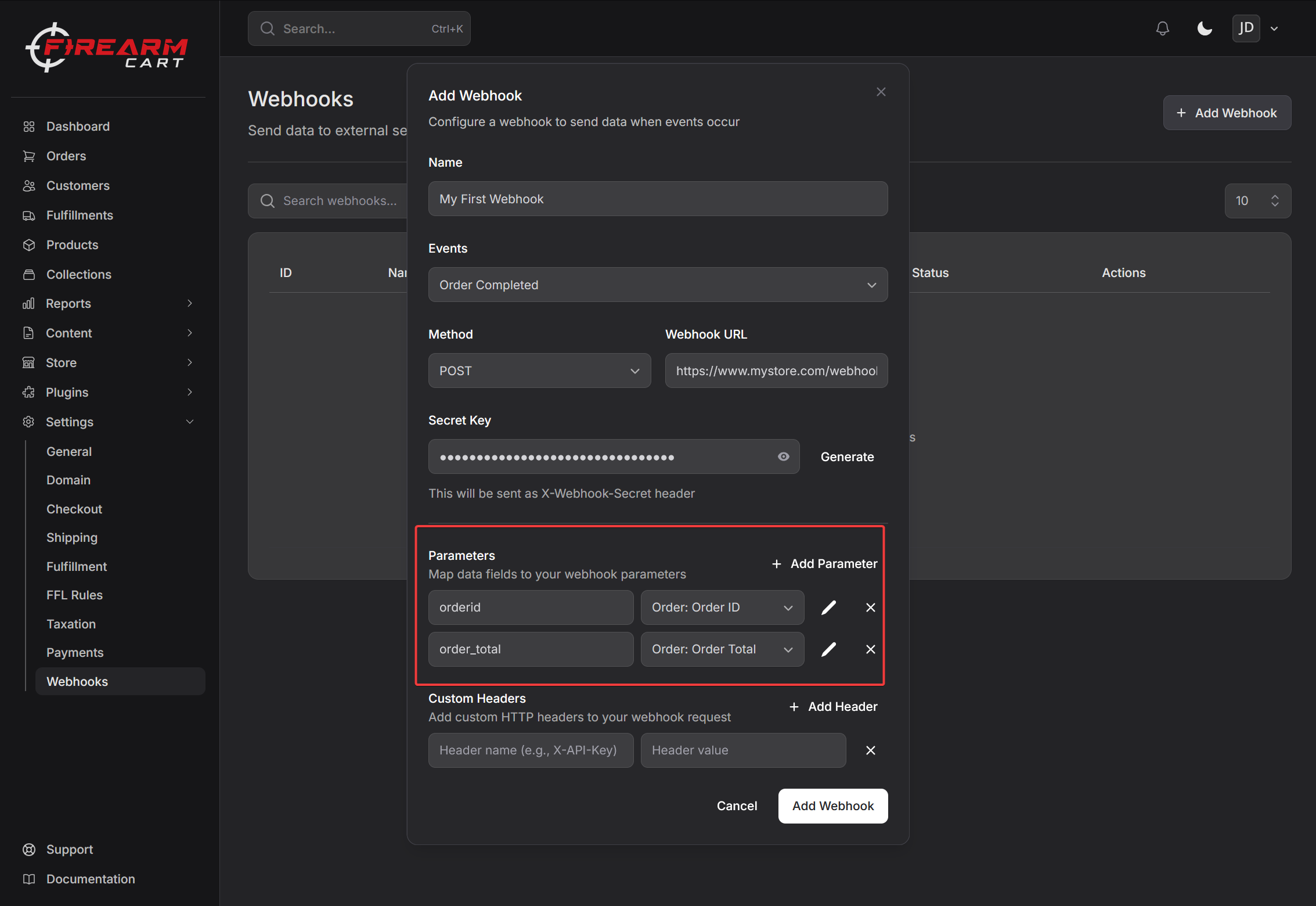

#Step 4: Configure Parameters

Map data fields to your webhook payload:

1. Click Add Parameter
2. Enter the parameter name (what your endpoint expects)
3. Select a value from the dropdown, or use a custom static value
4. Click the pencil icon to enter a custom value instead

#Step 5: Add Custom Headers (Optional)

Add any additional HTTP headers your endpoint requires:

1. Click Add Header
2. Enter the header name (e.g., "X-API-Key")
3. Enter the header value

#Step 6: Save

Click Add Webhook to create the webhook.

---

#Available Data Fields

When configuring parameters, you can map these data fields:

#Order Data

Field	Description
Order ID	Internal order identifier
Order Status	Current order status
Order Total	Total amount
Order Subtotal	Subtotal before tax/shipping
Order Tax	Tax amount
Order Shipping	Shipping cost
Order Discount	Discount applied
Order Created Date	When the order was placed

#Customer Data

Field	Description
Customer ID	Internal customer identifier
Customer First Name	Customer's first name
Customer Last Name	Customer's last name
Customer Email	Customer's email address
Customer Phone	Customer's phone number

#Shipping Address

Field	Description
Shipping First Name	Recipient first name
Shipping Last Name	Recipient last name
Shipping Address 1	Street address line 1
Shipping Address 2	Street address line 2
Shipping City	City
Shipping State	State/Province
Shipping ZIP	Postal/ZIP code
Shipping Country	Country

#Billing Address

Field	Description
Billing First Name	Billing first name
Billing Last Name	Billing last name
Billing Address 1	Street address line 1
Billing Address 2	Street address line 2
Billing City	City
Billing State	State/Province
Billing ZIP	Postal/ZIP code
Billing Country	Country

#Fulfillment Data

Field	Description
Fulfillment ID	Internal fulfillment identifier
Tracking Number	Carrier tracking number
Tracking Carrier	Shipping carrier name
Tracking URL	Direct link to tracking page
Fulfillment Status	Current fulfillment status

---

#Webhook Headers

Every webhook request includes these headers:

Header	Description
Content-Type	Always application/json
X-Webhook-Secret	Your configured secret key
X-Webhook-Event	The event that triggered the webhook

Plus any custom headers you configure.

---

#Webhook Payload

The payload includes:

• Your configured parameters with their mapped values
• _event - The event name that triggered the webhook
• _timestamp - ISO 8601 timestamp of when the webhook was sent

Example payload:

{
  "order_id": "1042",
  "customer_email": "[email protected]",
  "total": "299.99",
  "tracking_number": "1Z999AA10123456784",
  "_event": "tracking.assigned",
  "_timestamp": "2026-01-11T15:30:00Z"
}

---

#Managing Webhooks

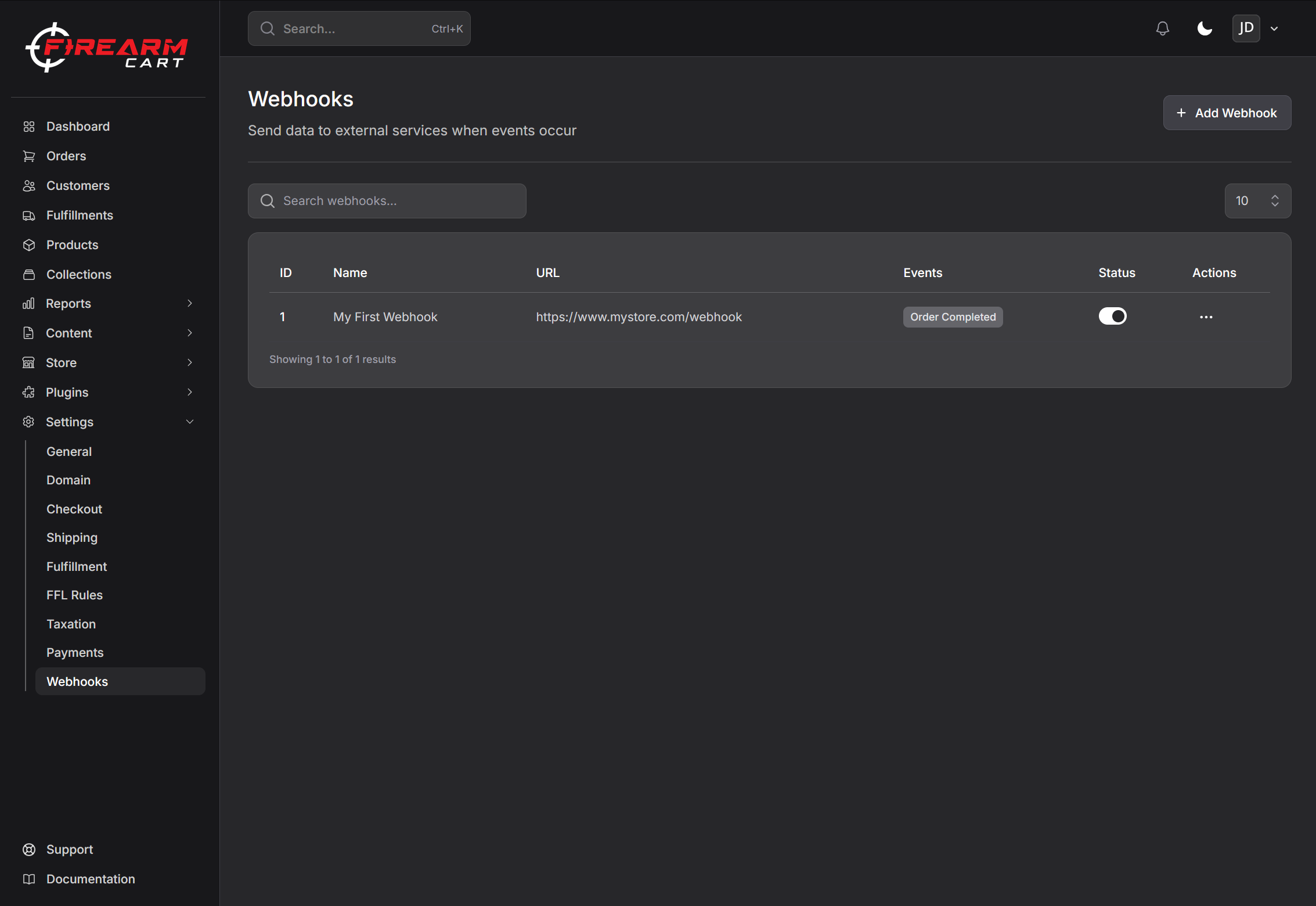

#Viewing Webhooks

Go to Settings > Webhooks to see all your webhooks with:

• Name and URL
• Subscribed events
• Active/Inactive status
• Action menu

#Editing a Webhook

1. Click the ... menu on a webhook
2. Select Edit
3. Update settings as needed
4. Click Save Changes

#Enabling/Disabling

Toggle the switch to enable or disable a webhook without deleting it.

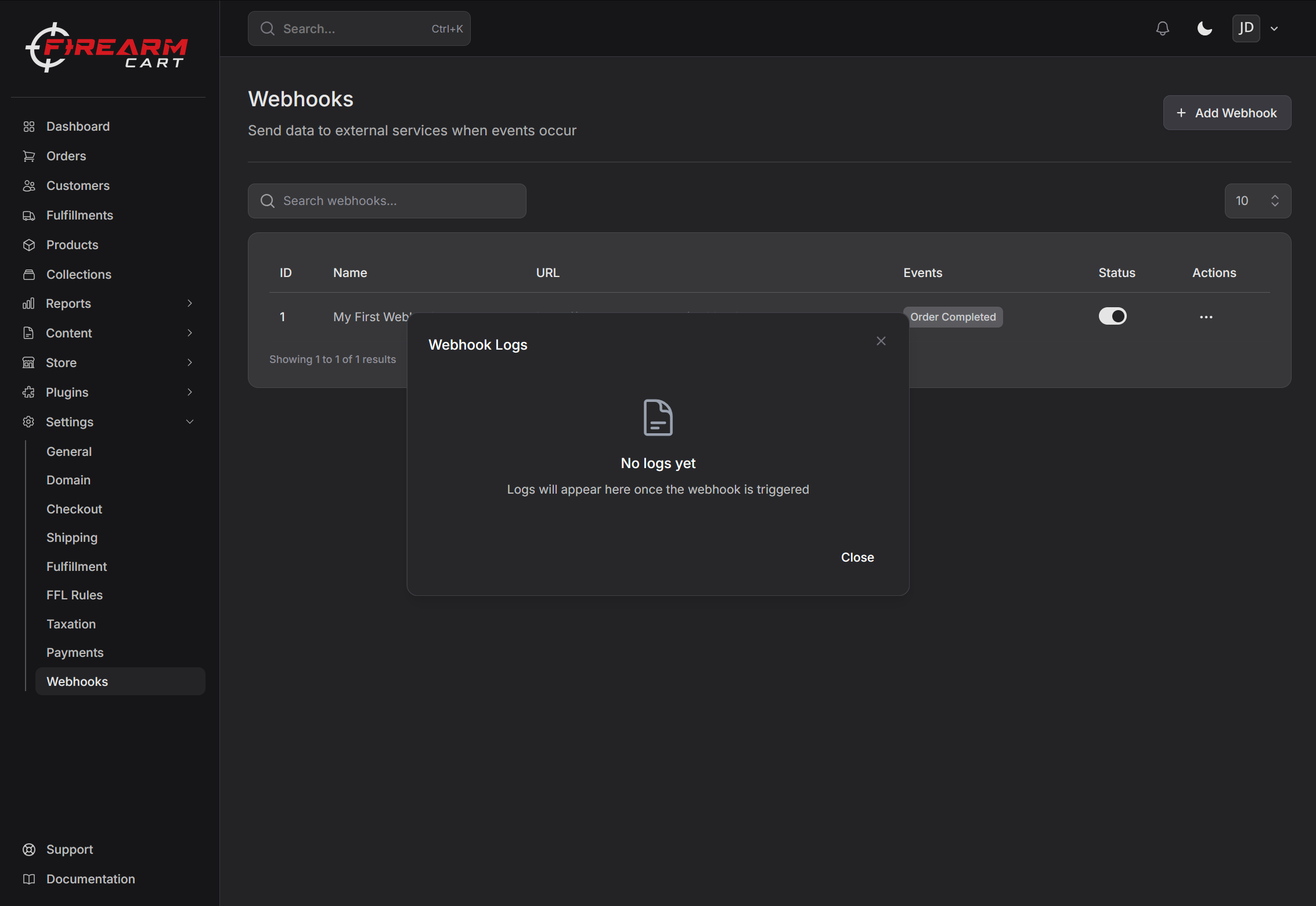

#Viewing Logs

1. Click the ... menu on a webhook
2. Select View Logs
3. Review delivery history including:
   • Event type
   • Response status code
   • Delivery attempts
   • Timestamp

#Deleting a Webhook

1. Click the ... menu on a webhook
2. Select Delete
3. Confirm deletion

Note: Deleting a webhook also removes all associated delivery logs.

---

#Delivery & Retries

#Delivery Behavior

• Webhooks are delivered within seconds of the event
• Timeout: 30 seconds per request
• Successful delivery: HTTP 2xx response

#Retry Policy

If delivery fails, FirearmCart retries automatically:

Attempt	Delay
1st retry	1 minute
2nd retry	5 minutes
3rd retry	30 minutes

After 3 failed attempts, the webhook is marked as failed.

#Log Retention

Webhook logs are retained for 30 days.

---

#Troubleshooting

#Webhooks Not Triggering

Symptoms: Events occur but webhooks aren't sent

Solutions:

• Verify the webhook is Active (switch is on)
• Check that the event is selected
• Review webhook logs for errors

#Delivery Failures

Symptoms: Webhook logs show failed status

Solutions:

• Verify your endpoint URL is correct
• Check your server is accepting connections
• Ensure your endpoint returns HTTP 2xx for success
• Check server logs for errors

#Invalid Secret Error

Symptoms: Your endpoint rejects the webhook

Solutions:

• Compare the secret in FirearmCart with your endpoint configuration
• Ensure you're reading the X-Webhook-Secret header correctly
• Check for whitespace or encoding issues

#Missing Data

Symptoms: Webhook payload is missing expected fields

Solutions:

• Review your parameter configuration
• Ensure you've mapped all needed fields
• Check that the data exists for the order (e.g., customer has phone number)

---

#Security Best Practices

#Verify the Secret

Always verify the X-Webhook-Secret header matches your configured secret before processing.

#Use HTTPS

Always use HTTPS URLs to encrypt webhook data in transit.

#Validate Data

Don't trust webhook data blindly. Validate and sanitize before using.

#Respond Quickly

Return a response within 30 seconds to avoid timeouts and retries.

---
